PTZROBOT Pro Line Vertical Positioner

Vertical stroke 100 cm

Speed 40 mm/sec

Max 30 Kg

Proper studio appearance, not a tripod!

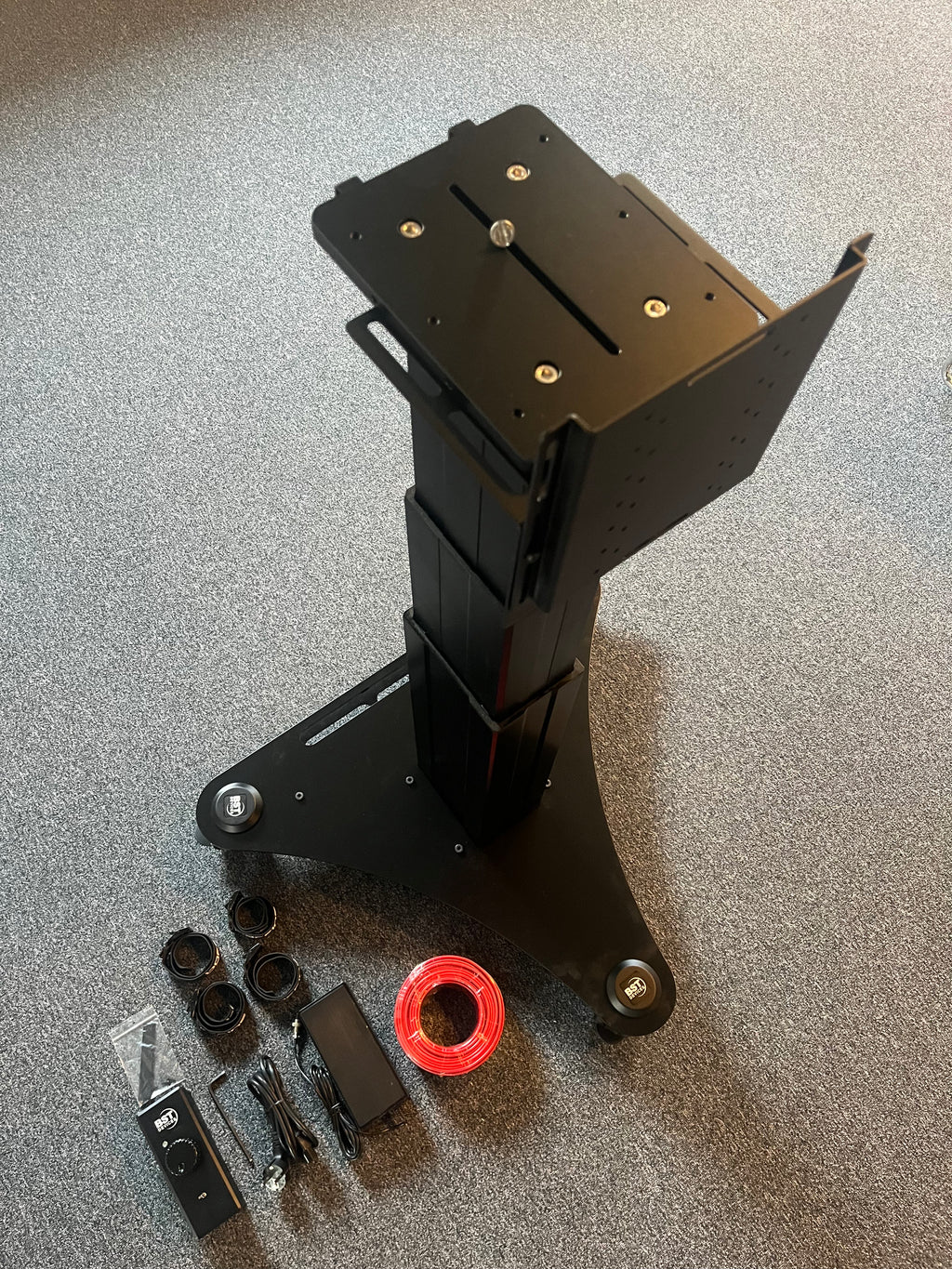

Picture 1 shows what is included in shipment.

• Base plate w 3 lockable wheels
• Pillar/Column w 100 cm stroke
• Top plate w adjustable mount for PTZ
• Bracket for attachment of VESA 75 or 100 screen/monitor
• Table top remote control, speed 0-100% + direction
• 25 meter control cable (Can easily be extended to 300 meters, 2 x 2,5 mm2 cable)
• PSU 100-250V 50/60Hz 240W
• Tools + remote coupler
• Cable ties
• Basically everything needed except PTZ and monitor/screen!

Picture 2 shows front view with column in its lowest position and with a 24 inch monitor/screen and a PTZ mounted (Monitor/screen and PTZ not included in delivery)

Picture 3 shows side view with column in its lowest position and with a 24 inch monitor/screen and a PTZ mounted (Monitor/screen and PTZ not included in delivery)

Picture 4 shows rear view where cable tie bars, both behind camera and at the rear of floor plate are visible. Please note also shelf, intended for PSUs, cable looms, conerters etc, to be hidden below floor plate. This allows for a neat studio installation.

SKU:  PTZRO-PRO-VPOS-100
