PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T

PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T

€100,00
€100,00
Skip to product information
PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T
  • PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T
  • PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T
  • PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T
  • PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T
PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T

PTZROBOT Studio Line Vertical and Horizontal IP Robot THE BIG T

Vertical stroke 100 cm

Vertical speed up to 35 mm/sec

Horizontal stroke 260 cm

Horizontal speed up to 100 mm/sec

- IP controllable from SKAARHOJ remotes, preferably with extra joystick (XC7). This remote can also of course control the PTZ
(It is not optimal to control multi axle systems from one single joystick - pan, tilt, zoom, focus, vertical and horizontal)

Proper studio appearance, not a tripod!

Weight of camera + screen recommended between 4.5 - 7 Kg

Horizontal rail has a mechanical counter rotation/panning mechanism to achieve a rather consistent framing despite camera moving sideways.

This makes it possible to use any brand PTZ and still achieve a relatively stable travel, including starts and stops, please se video.  Video shows a rather inzoomed travel as you can see. This performance is normally only achievable at much much higher cost!

Rail also has an internal counterweight, making system balanced even when camera/screen is at its most external position

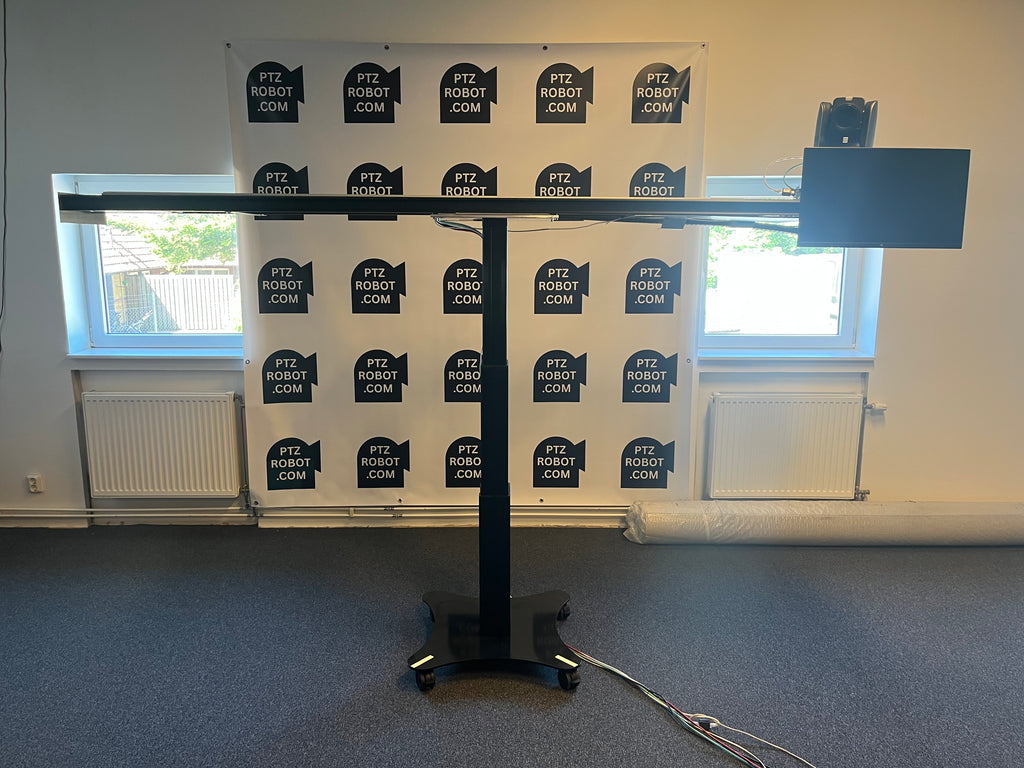

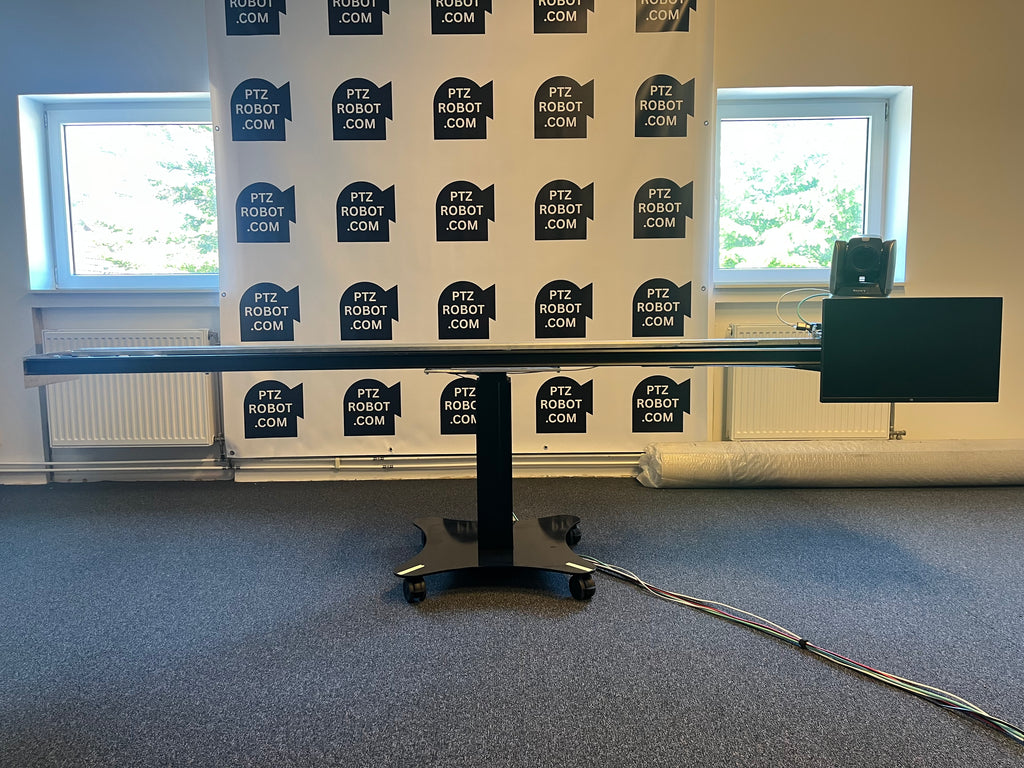

Picture 1 and 2 shows system at its highest and lowest positions, both with camera/screen at endpoint. Please note that system is still balanced because of in rail travelling counterweight.

(PTZ and screen not included in delivery)
