PTZROBOT Ceiling rail w pillar/column (Coming)

Will be offered both in PRO Line and MASTER Line

Coming product:

A robotic track system with robotic pillar/column intended for PTZs

- Ceiling track up to 6 meters (Any custom length up to 6 meters can be ordered)

- Track gauge 42 cm c/c.

- Vertical stroke 100 cm (!) Important in order to be able to reach eyeheight of both standing and sitting people.

- Mount for VESA 75 or 100 monitor (Fex prompter or talent monitor) directly below lens.

- Rail sleepers has mounts for 240 c/c and 350 c/c standard trusses.

- IP controllable from SKAARHOJ remotes, preferably with extra joystick (XC7). This remote can of course also control the PTZ

(It is not opimal to control multi axle systems from one single joystick - pan, tilt, zoom, focus, vertical and horizontal.

Dual joysticks makes it much easier and intuitive)

Because of low collapsed length of pillar center of lens can reach as high as 96 cm below ceiling if PTZ is hanging, as high as 56 cm below ceiling if standing PTZ. (Standing PTZ needs optional kit)

All assuming distance from PTZ base to center of lens is 20 cm.

This allows for center of lens stroke to be about 1 meter to 2 meters from floor with a ceiling height down to 255 cm.

This means that a ceiling rail system is possible to install in many standard rooms/offices!

PROTOTYPE IS NOW IN ACTION

As seen on pictures, with a hanging PTZ and 24 inch screen (PTZ and screen not included in delivery)

In this case the 6 meter rail is mounted under a standard truss 240 mm c/c where underside of truss is 266 cm above ground.

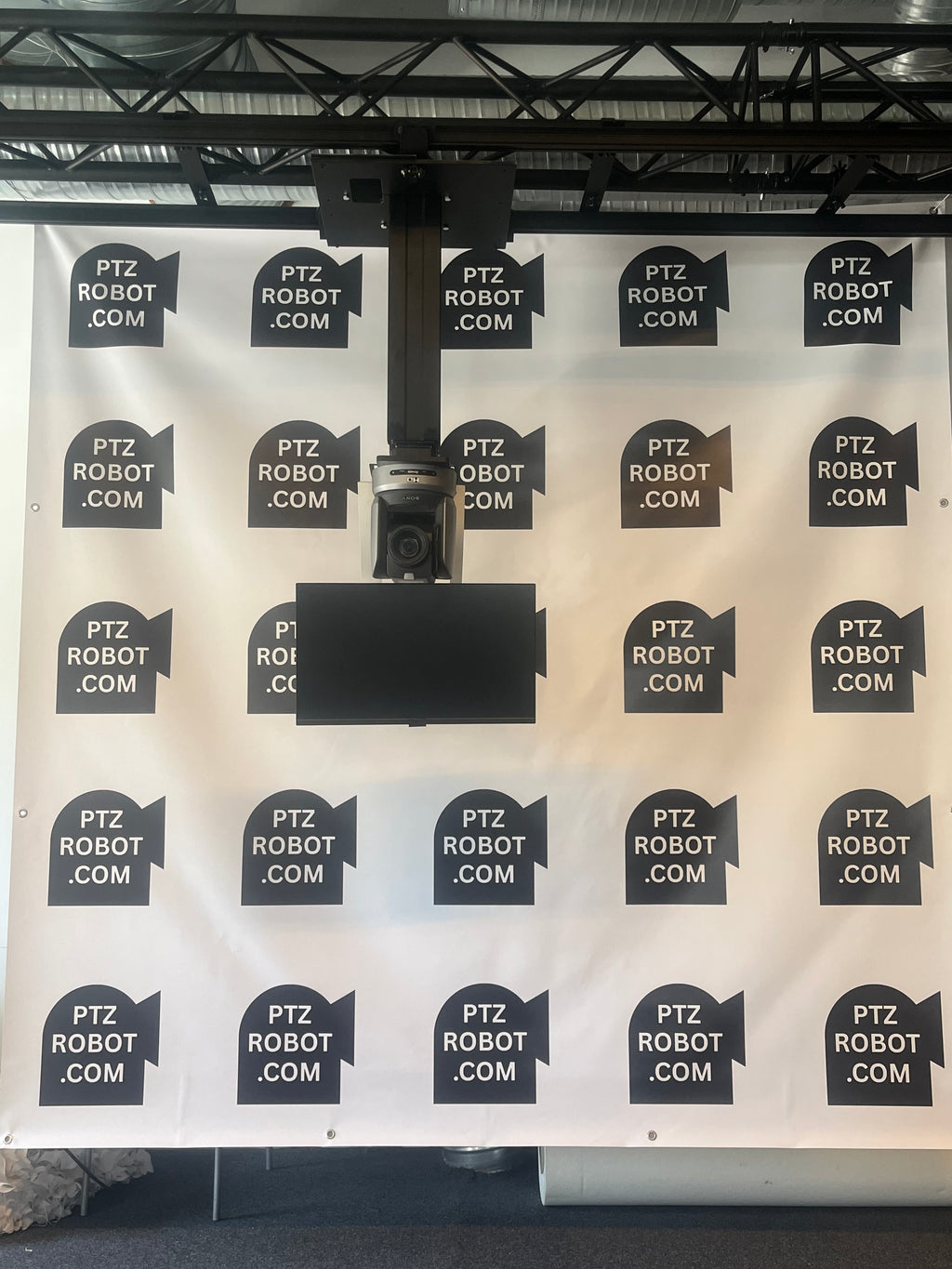

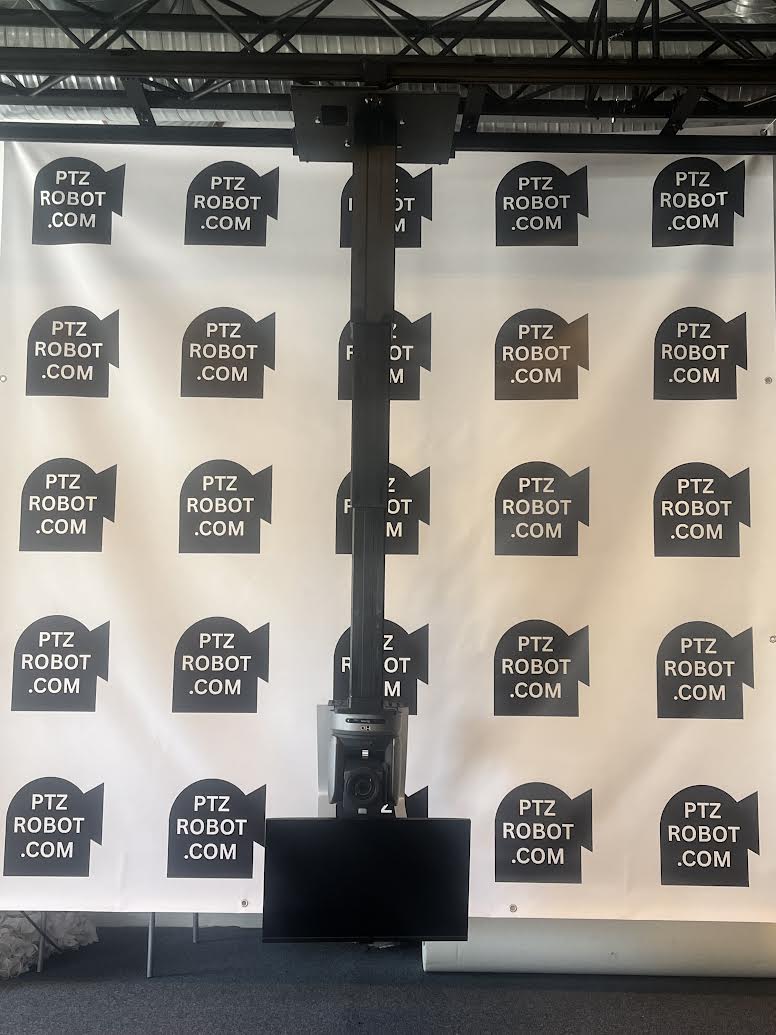

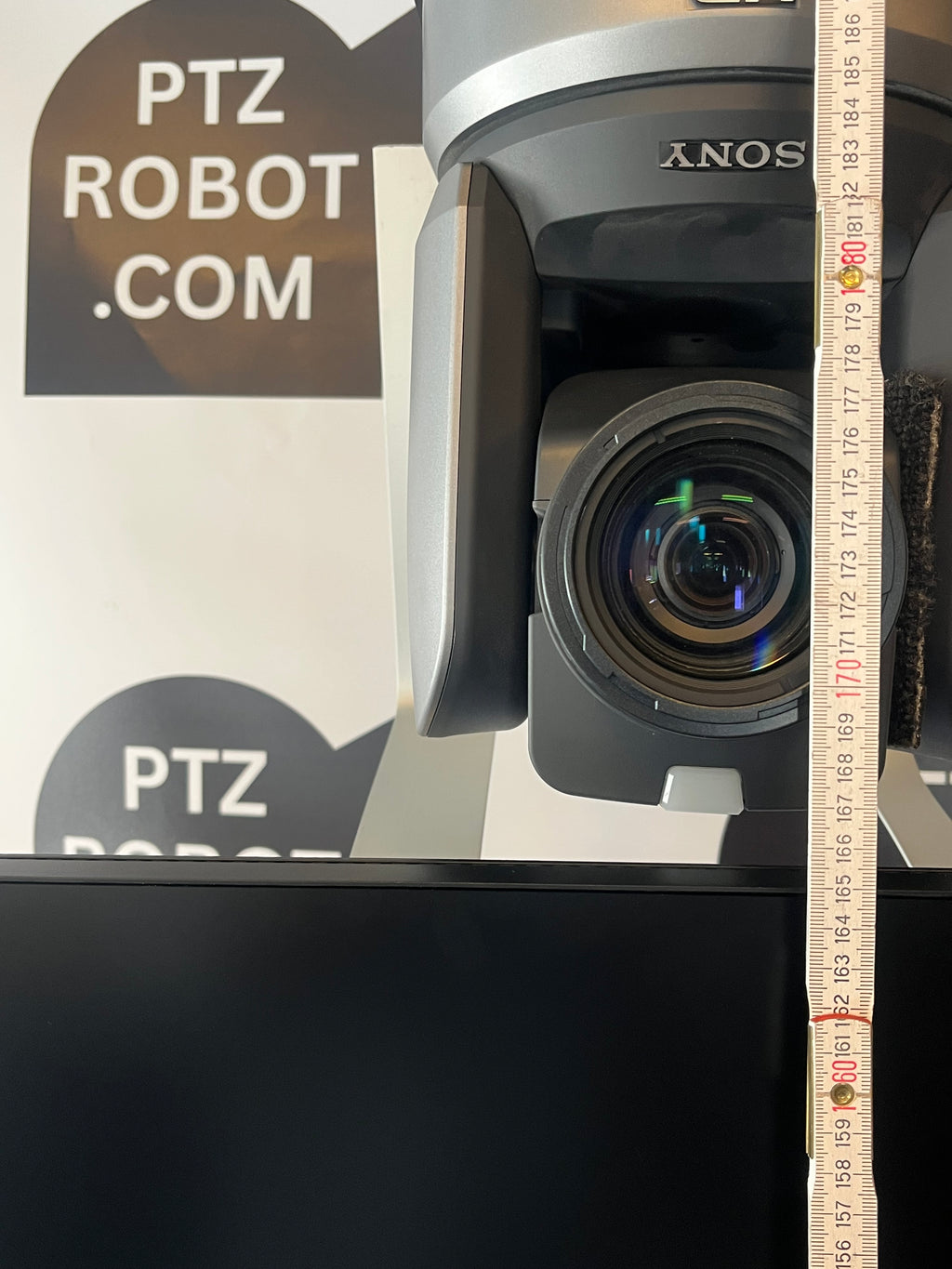

Picture 1 shows camera in its highest position, center of lens about 173 cm above ground, picture 3 shows camera at its lowest position, about 73 cm above ground.

(Distance from PTZ base to center of lens can vary a bit depending on camera model, but is often about 20 cm)
